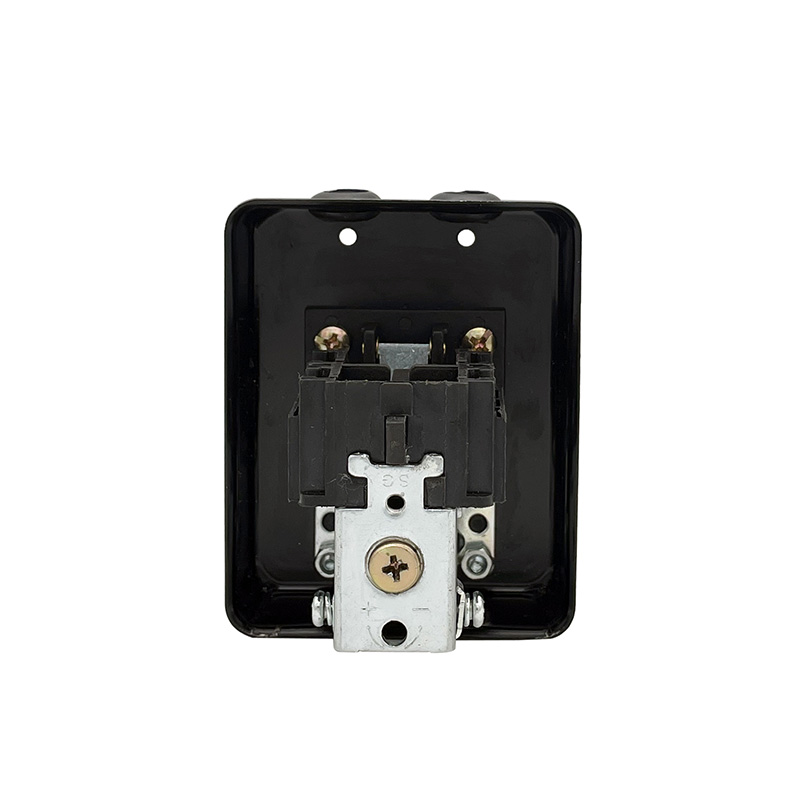

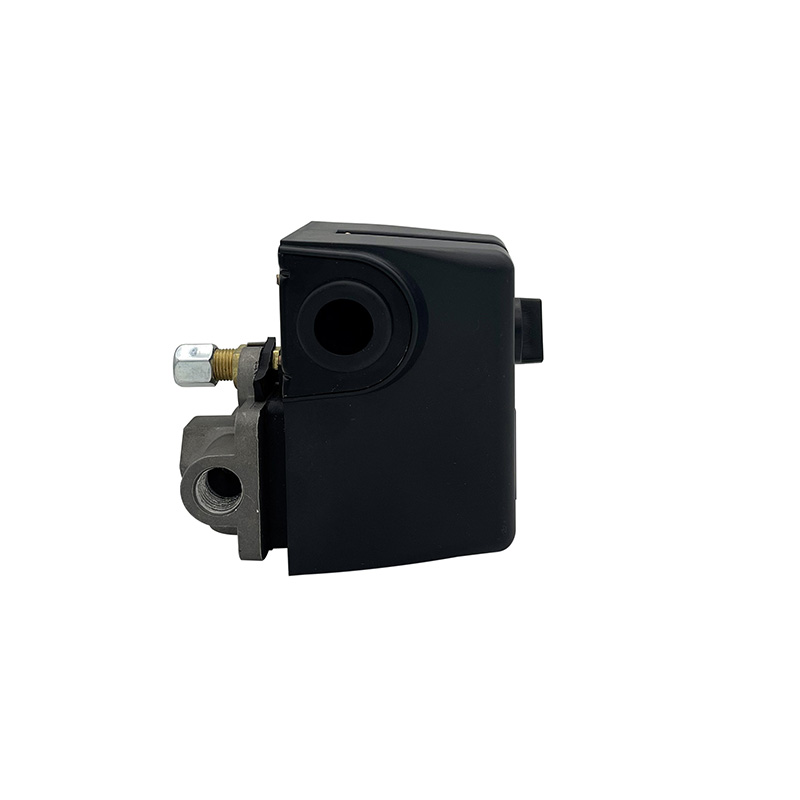

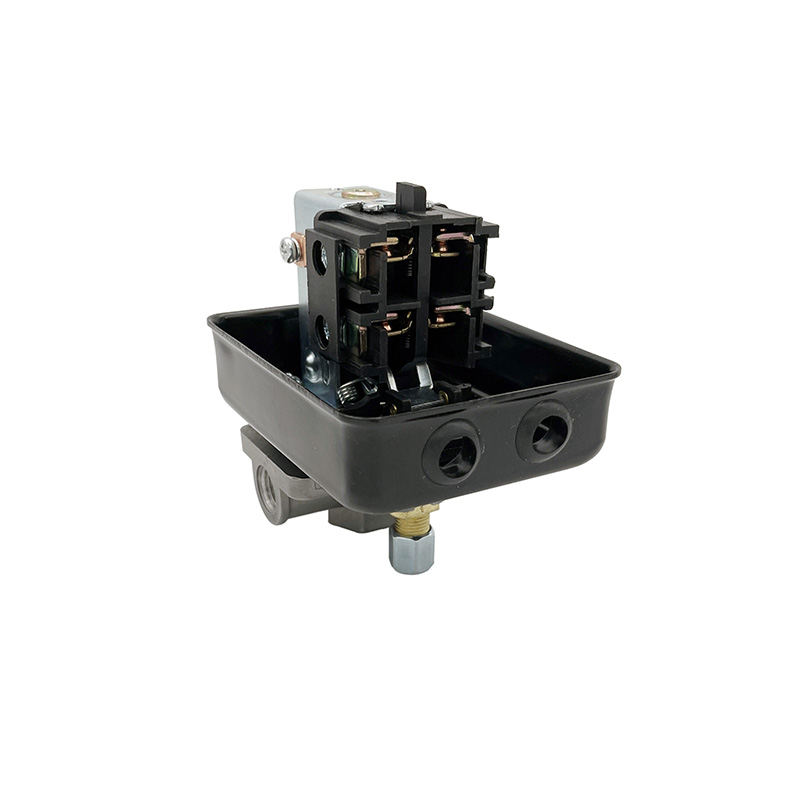

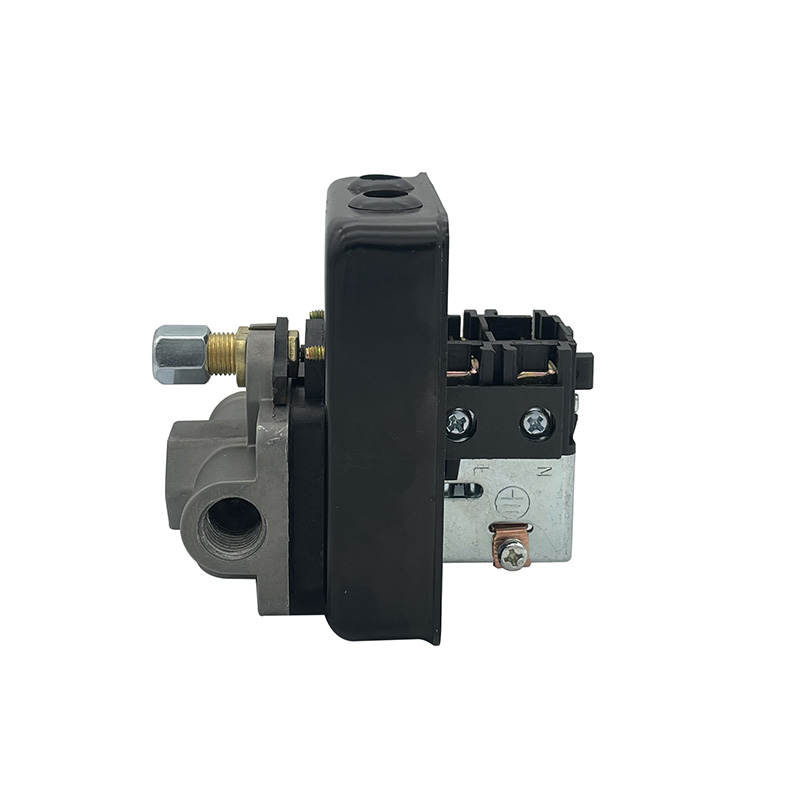

SG-3F1X1 Iron shell
Category:SG-3 series pressure control switch
Release date:2022-04-20 16:04:31

  SG-3 series pressure control switch is a mechanical pressure control device used to control the automatic start and stop of the air compressor within the preset pressure value range. The device is flexible to install, easy to use and durable. Closed and with a relief valve to avoid motor load starting, which is more energy-saving and environmentally friendly. The combination with Bama assembly is convenient for users to install and use directly. Special specifications can be customized according to customer requirements.

technical parameter:
                                                                                                                                                                       unit conversion:   1kgf/cm2=14.2PSI   1Bar=14.5PSI
Model
Pressure adjustment range kgf/cm2
(PSI)
Differential pressure range kgf/cm2
(PSI)
Factory setting shutdown pressure kgf/cm2
(PSI)
Rated voltage/current Common interface standards
SG-3
4.0-16.0
(55-232)
2.0-5.0
(30-70)
8.0
(115)
240VAC/20A
(16A)
G1/4,G3/8,R1/4,R3/8,NPT1/4,
RP1/4

SG-3 order number: interface form + interface thread + relief valve form + relief valve inner diameter + factory setting shutdown pressure
Interface form Display method Interface thread Display method Relief valve form Display method Relief valve inner diameter Display method Clamp form Representation
Plastic bottom plate single pass A G1/4 1 Copper valve T ¢6.1 1 Plastic clip A
Plastic base plate cross B G3/8 2 Zinc valve X ¢6.4 2 Wire clip B
Iron bottom plate single pass C ZG1/4 3 Plastic valve S none 3 Certified wire clip hole C
Iron base plate cross D ZG3/8 4 Valveless W     Certified wire clip hole D
Iron shell single pass E NPT1/4 5
Iron shell spool F RP1/4 6

Example: SG-3A1T1/8kgf/cm2 is a single universal G1/4 thread, the inner diameter of the copper relief valve is ¢6.0, and the factory setting shutdown pressure is 8kgf/cm2
Example: SG-3D5X2C/8kgf/cm2 is iron base plate with NPT1/4 thread, inner diameter of zinc relief valve ¢6.4, factory setting shutdown pressure 8kgf/cm2
